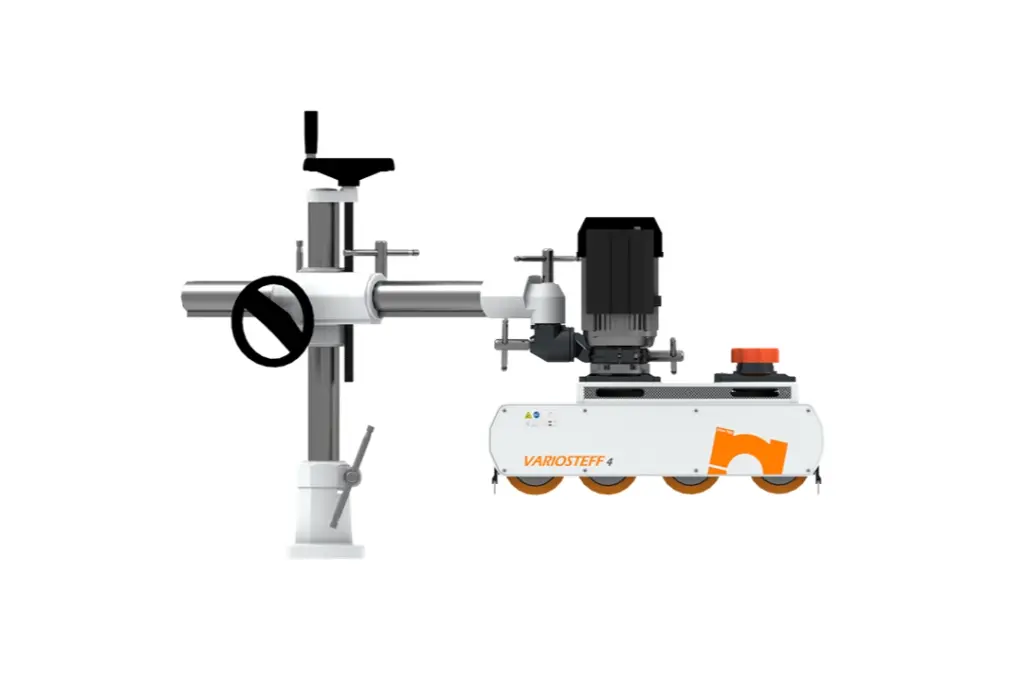

VARIOSTEFF 4
SKU:
169.00230
Professional automatic power feeder unit with 4 wheels and variable speeds.
Brand:
Maggi Technology
Category:
Power Feeder
Professional power-feeding unit with fixed speeds
Safety device for a safe and effective workpiece feeding on different types of traditional wood-working machines.
- Improves the safety: the operator does not have to there hands close to the cutting tool
- Improves the finish quality, thanks to the constant and feed-rate
- Feed-rate can be easily selected to meet every specific working need
- easily adjustable to suit different sizes of work pieces
More than 400.000 machines manufactured, over sixty years' experience. Maggi is the only European manufacturer of power-feeding units, which are 100% Italian-made, and abiding by the highest quality standards, as a result of the "Lean" manufacturing process, also known as "Toyota System"
High-quality end product

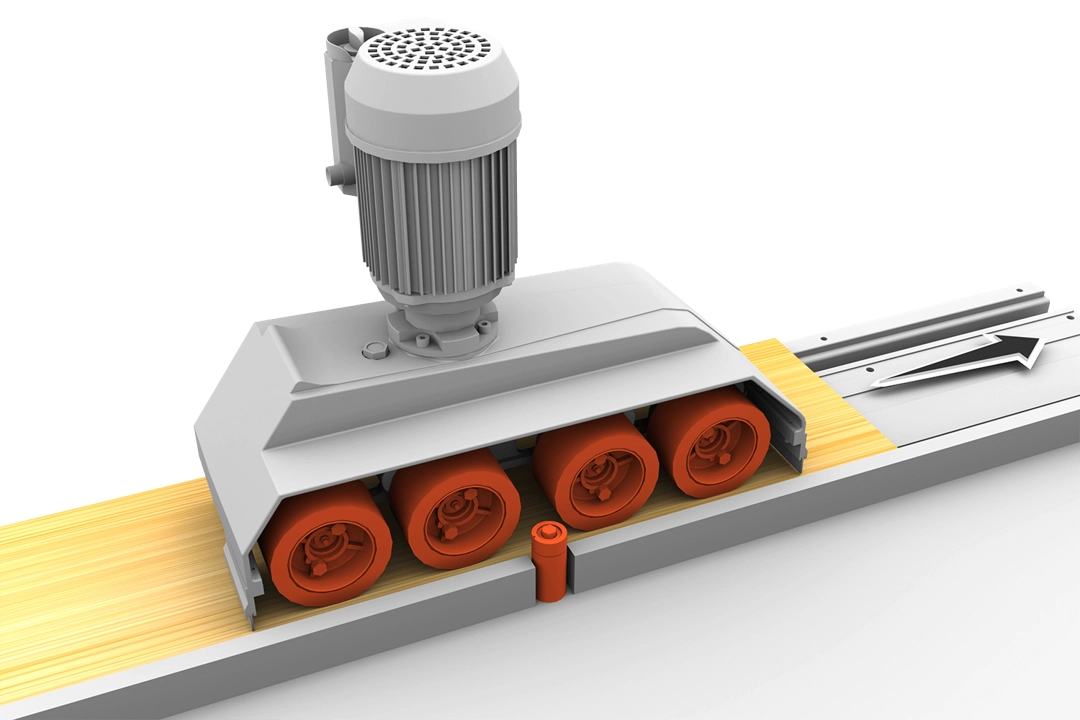

4-wheel model: the ideal solution for the feeding of laths and medium or small-size workpieces. Thanks to the two infeed-wheels and the third outfeed one, the workpiece is constantly and evenly feeded althrough the working process, thus remarkably improving the quality of the end product.
Highest versatility

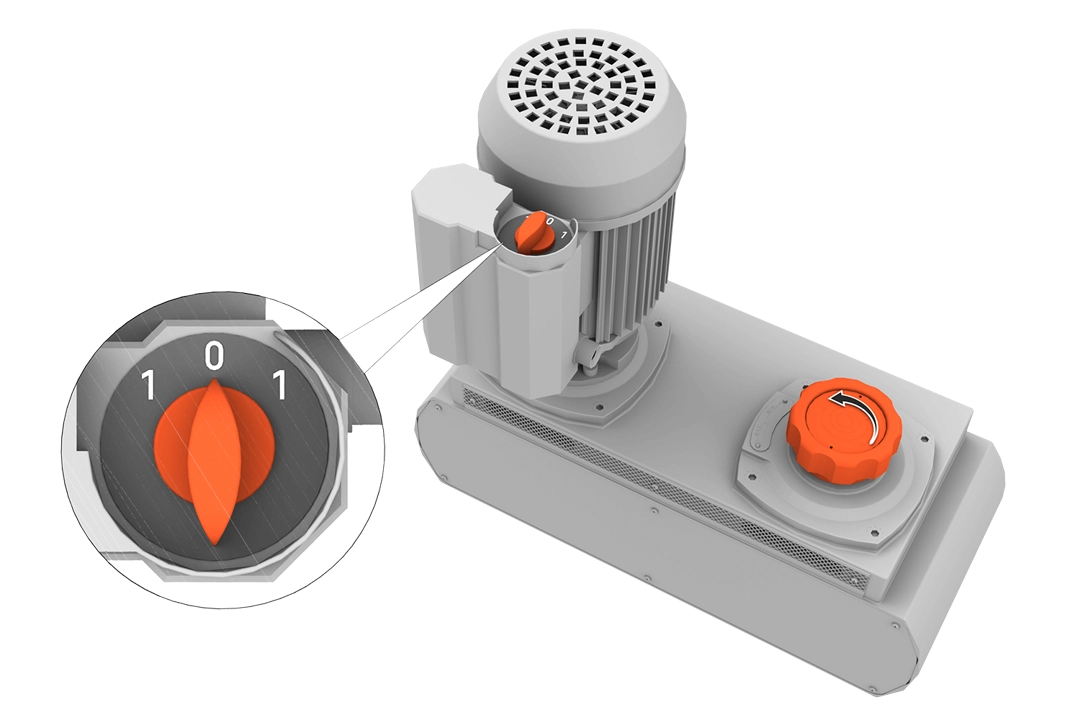

A wide range of variable speeds, that you can easily select by turning a knob. The ideal solution for those who often need to change the feeding rate. The speed selector on the motor unit allows a quick change of the feeding direction back and forth.
High adaptability

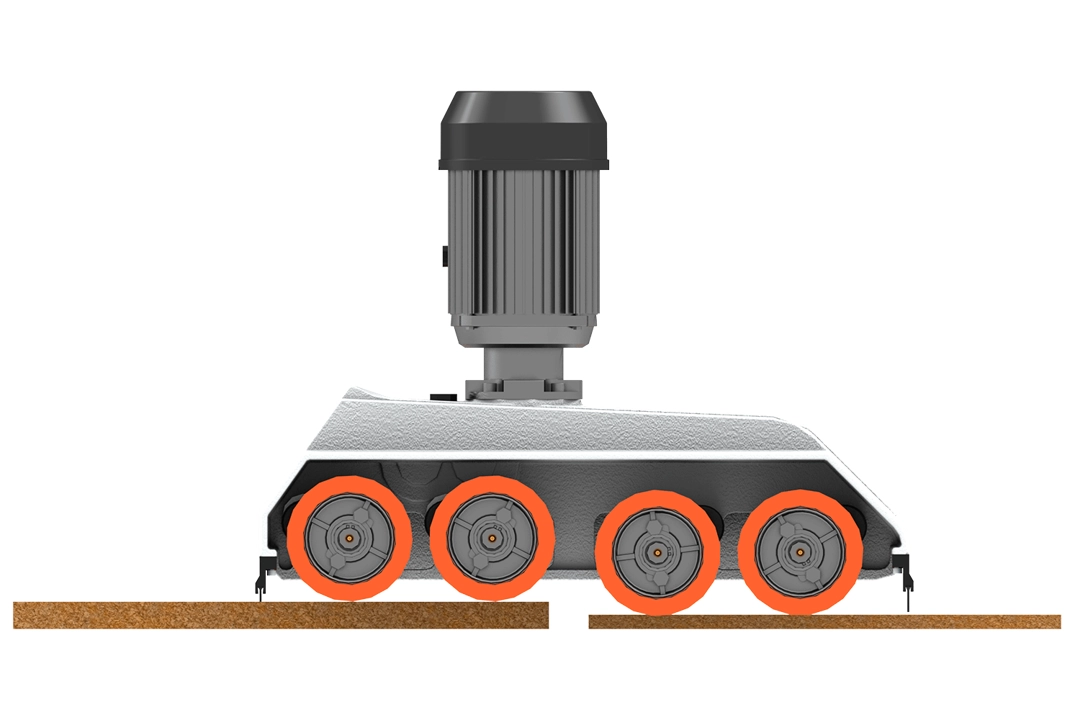

The 20 mm wheel suspention, with calibrated springs, allows the constand and even feeding of workpieces with different thicknesses without any additional set-up.
Safety brushes
Additional safety devices, both sides of the feeding unit.
Data
- N. of speed back and forth
- Fixed speeds
- N. of wheels
- Wheel size
- Pulley suspension
- Distance between pulley
- Distance between first and last pulley

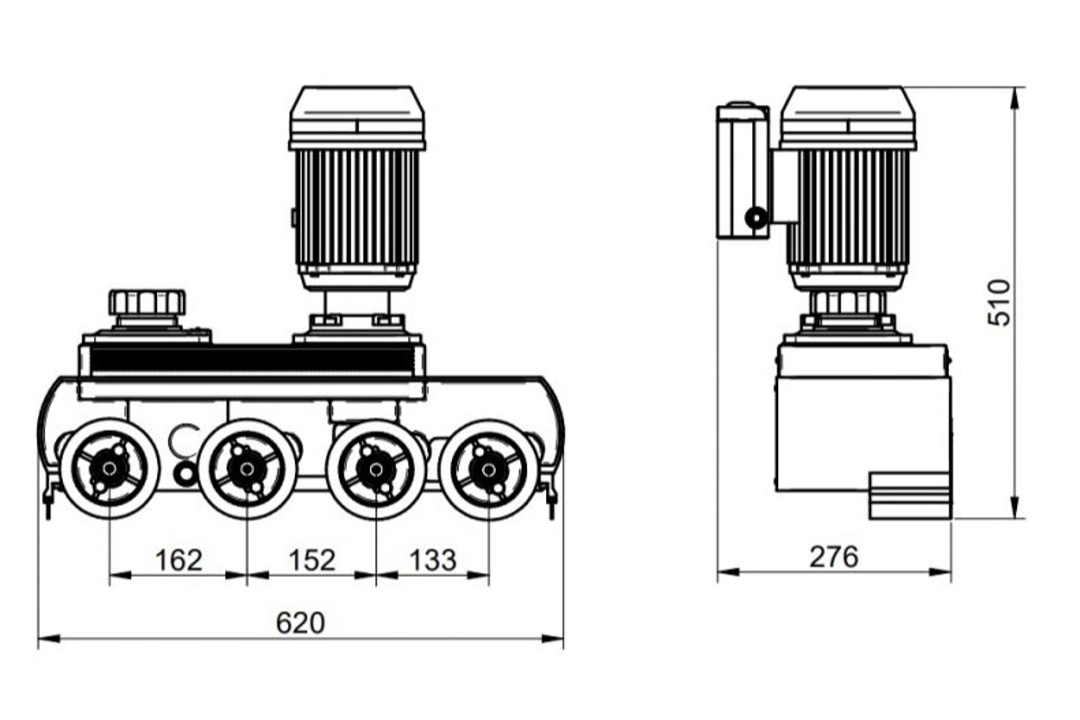

- Overall dimensions and net weight of feeding unit
- Packing dimensions and gross weight
3 to 18 m/min ( up to option 33 m/min )
4
120 x 60 mm
20 mm
162 - 152 - 133 mm
447 mm
620 x 206 x 510 mm - 35 kg
670 x 570 x 330 mm - 37kg
Standard Equipment
- Motor 1HP / 0.75kW, 400V - 1400/2800rpm with 3m cable
- Cast aluminium housing, finshed on high-precisionmachining centers
- Steel-made gear cover
- Eco-friendly, rust-resistant powder coating
- Manufactured according to EC standards
- 50-Shore "Feeder Grip" rubber wheel
Professional power-feeding unit with fixed speeds
Safety device for a safe and effective workpiece feeding on different types of traditional wood-working machines.
- Improves the safety: the operator does not have to there hands close to the cutting tool
- Improves the finish quality, thanks to the constant and feed-rate
- Feed-rate can be easily selected to meet every specific working need
- easily adjustable to suit different sizes of work pieces
More than 400.000 machines manufactured, over sixty years' experience. Maggi is the only European manufacturer of power-feeding units, which are 100% Italian-made, and abiding by the highest quality standards, as a result of the "Lean" manufacturing process, also known as "Toyota System"
High-quality end product
4-wheel model: the ideal solution for the feeding of laths and medium or small-size workpieces. Thanks to the two infeed-wheels and the third outfeed one, the workpiece is constantly and evenly feeded althrough the working process, thus remarkably improving the quality of the end product.
Highest versatility
A wide range of variable speeds, that you can easily select by turning a knob. The ideal solution for those who often need to change the feeding rate. The speed selector on the motor unit allows a quick change of the feeding direction back and forth.
High adaptability
The 20 mm wheel suspention, with calibrated springs, allows the constand and even feeding of workpieces with different thicknesses without any additional set-up.
Safety brushes
Additional safety devices, both sides of the feeding unit.
