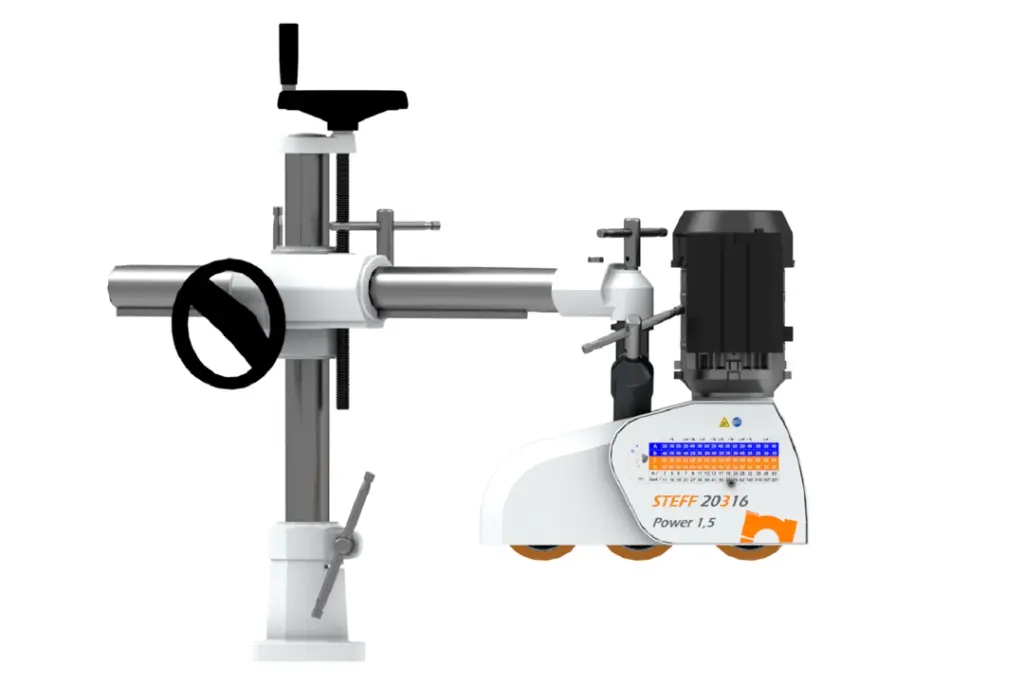

STEFF 20316 Power
SKU:
169.00130
Professional automatic power feeder unit with 3 wheels and fixed speeds.
Brand:
Maggi Technology
Category:
Power Feeder
Professional power-feeding unit with fixed speeds
Safety device for a safe and effective workpiece feeding on different types of traditional wood-working machines.
- Improves the safety: the operator does not have to there hands close to the cutting tool
- Improves the finish quality, thanks to the constant and feed-rate
- Feed-rate can be easily selected to meet every specific working need
- easily adjustable to suit different sizes of work pieces
More than 400.000 machines manufactured, over sixty years' experience. Maggi is the only European manufacturer of power-feeding units, which are 100% Italian-made, and abiding by the highest quality standards, as a result of the "Lean" manufacturing process, also known as "Toyota System"

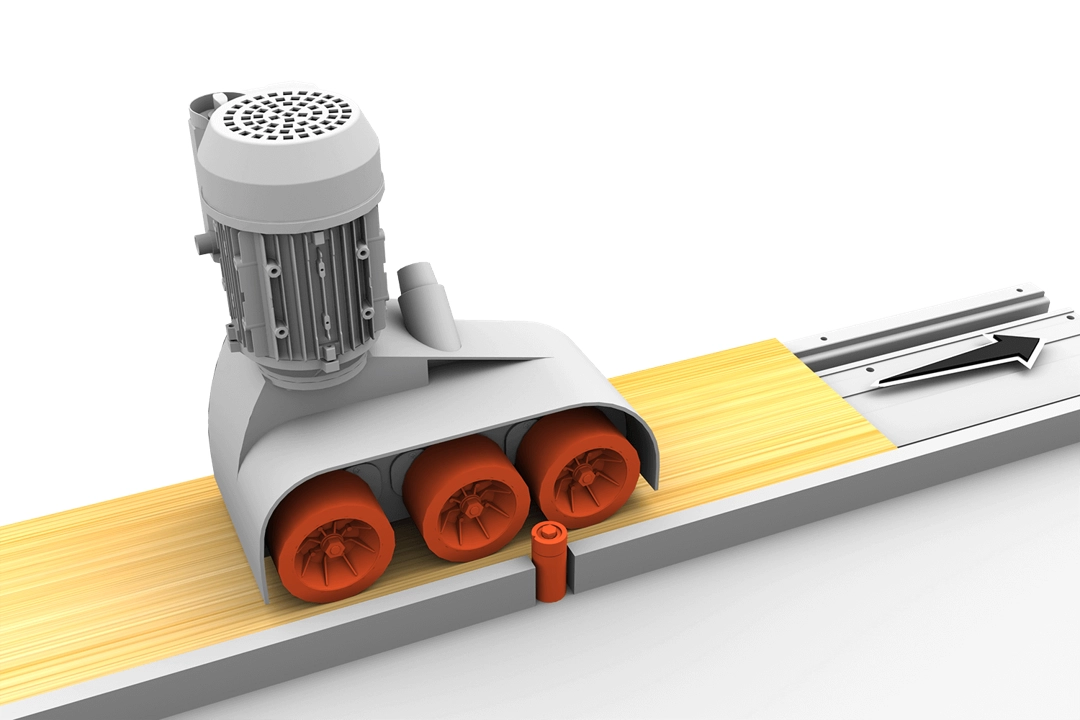

High-quality end product
3-wheel model: the ideal solution for the feeding of laths and medium or small-size workpieces. Thanks to the two infeed-wheels and the third outfeed one, the workpiece is constantly and evenly feeded althrough the working process, thus remarkably improving the quality of the end product.

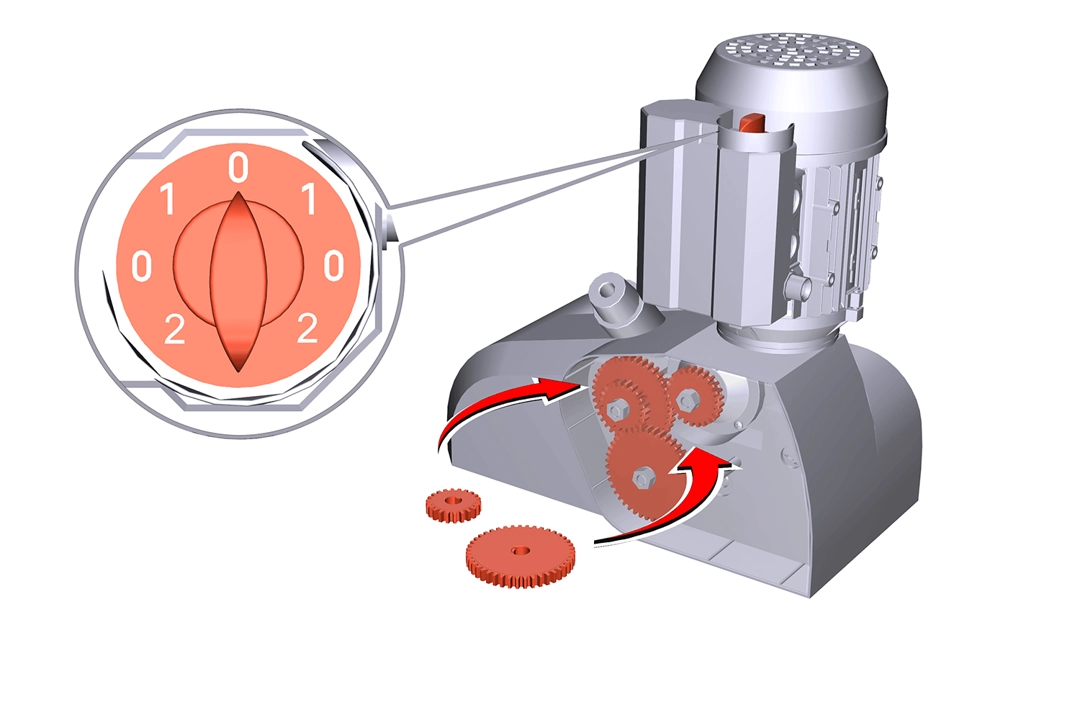

16 Speed - "Smart" and quick setup
Swapping and replacing the internal gears you can obtain 16 different speeds-unique-of -its-kind! Moreover, the speed selector, on the motor unit, allows a quick setup of the 1st and the 2nd feed-rate and the change of the feeding direction back and forth.

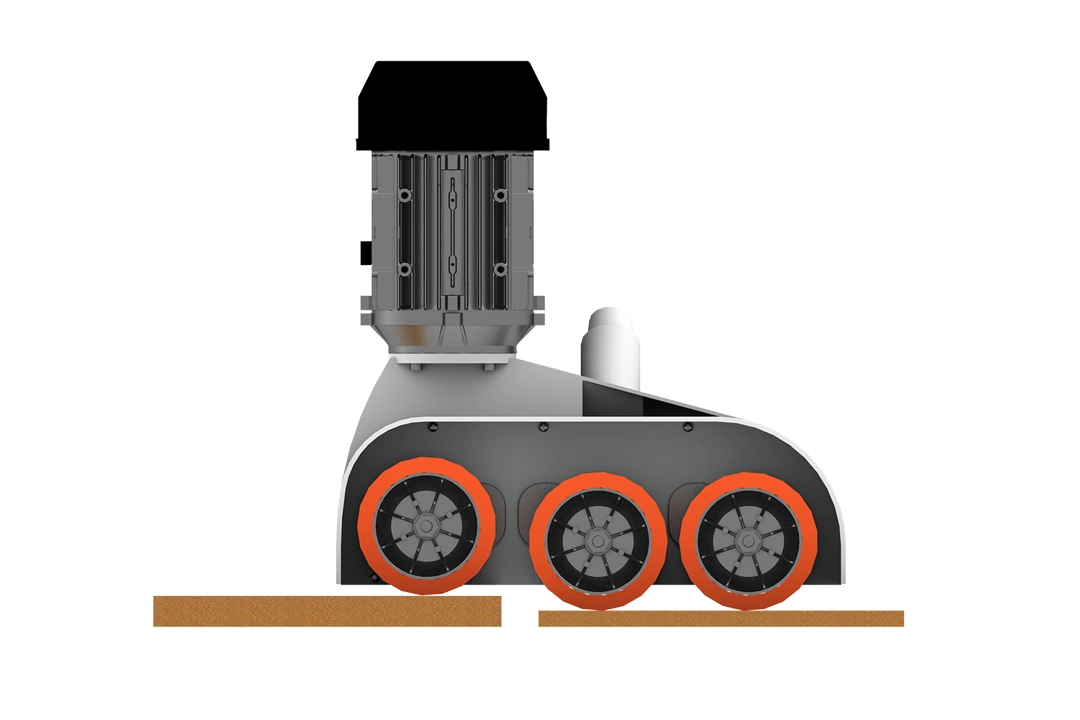

High adaptability
The 20 mm wheel suspention, with calibrated springs, allows the constand and even feeding of workpieces with different thicknesses without any additional set-up.

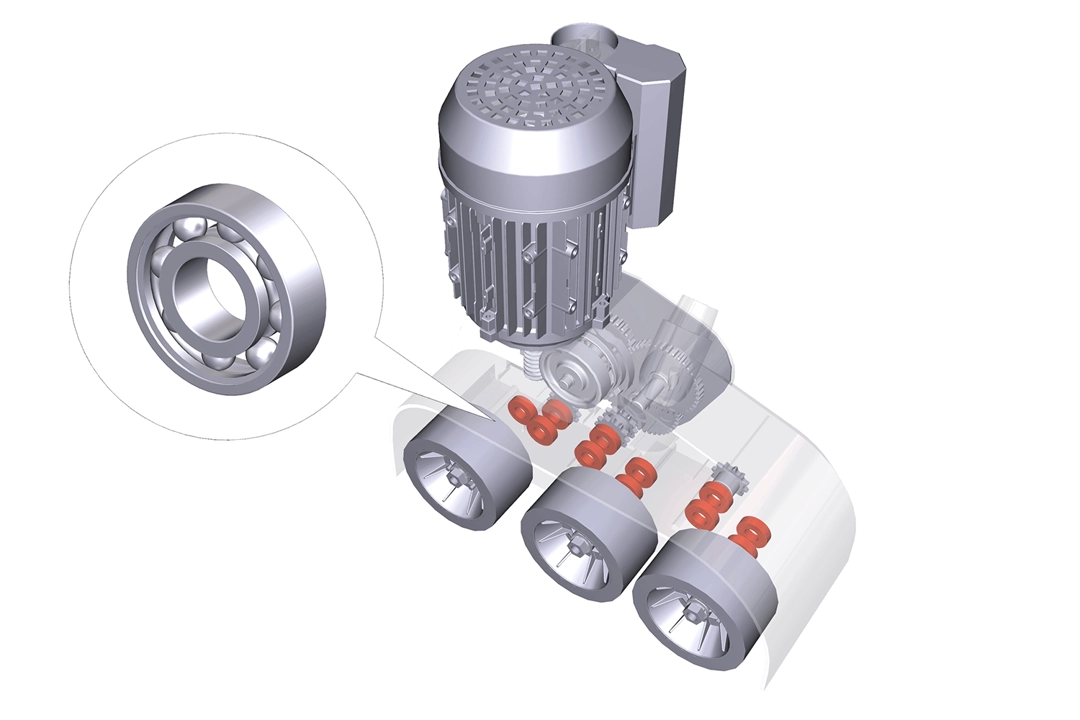

Maintenance - Free transmission
The transmission unit, working on bearings, has almost no internal friction, so that the amount of energy required is consequently reduced to the minimum. Unique of its kind.
Data
- N. of speed back and forth
- Fixed speeds
- N. of wheels
- Wheel diameter and thickness
- Wheel suspension
- Distance between wheels
- Distance between first and last wheel

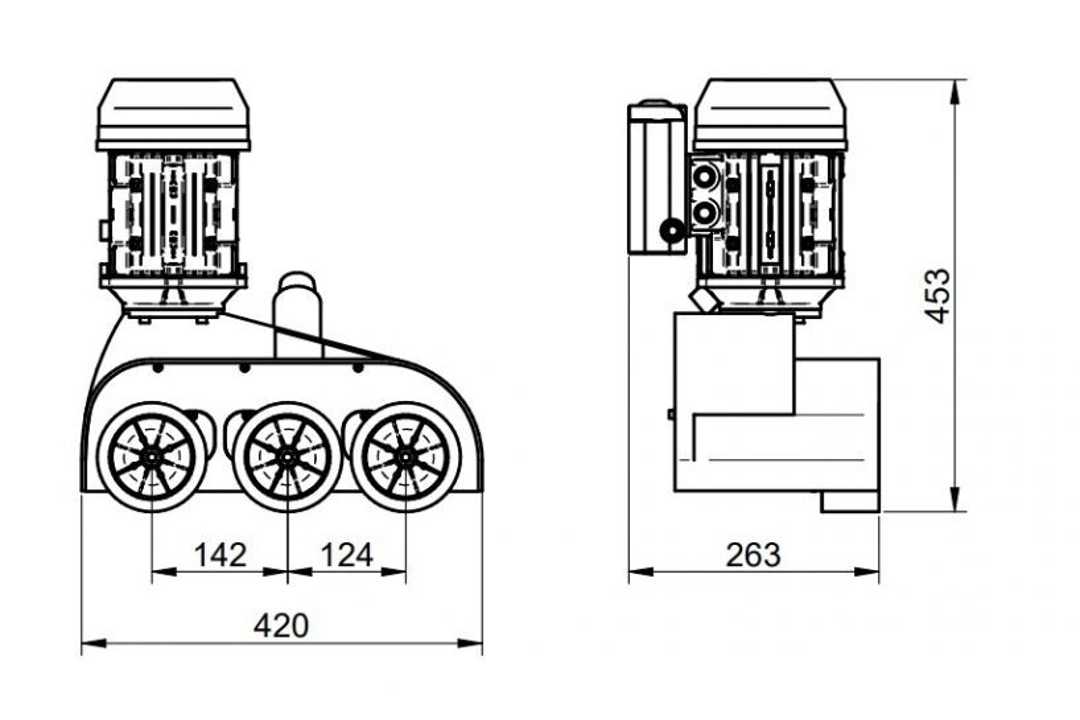

- Overall dimensions and net weight of feeding unit
- Packing dimensions and gross weight
16
3 - 5 - 6 - 7 - 9 - 11 - 12 - 13 - 17 - 18 - 24 - 25 - 32 - 35 - 48 - 63 m/min
3
120 x 60 mm
20 mm
142 - 124 mm
266 mm
424 x 210 x 460 mm - 30 kg
670 x 570 x 330 mm - 33.5kg
Standard Equipment
- Motor 1.5HP / 1.1kW, 400V - 1400/2800rpm with 3m cable
- Cast aluminium housing, finshed on high-precisionmachining centers
- Steel-made gear cover
- Eco-friendly, rust-resistant powder coating
- Manufactured according to EC standards
- 50-Shore Semi-Hub "Feeder Grip" rubber wheels
