Stand Plus
SKU:
169.00506
Stand Plus for professional automatic power feeder unit.
Brand:
Maggi Technology
Category:
Power Feeder
Data
- Vertical column: Length 540 mm, internal dia 58 mm
- Horizontal column: Length 1050 mm, internal dia 58 mm
- Manual quick positioning system using ergonomic handeles and adjustment handwheels
- Standard pipe - joint - collar assembly, internal collar dia 75 mm , thickness 30 mm
- Base with central dia 58 mm, N. 4 mounting holes dia 13 mm, 90 mm on the short side , 108 mm on the long side
Standard Equipment
- N. 1 Horizontal tube made of rectified steel, 1050 mm length
- N. 1 Vertical tube made of rectified steel, 540 mm length
- N. 1 Handwheel with rack and numeric counter for height adjustment
- N. 1 Handwheel with rack for horizontal movement adjustment
- N. 1 Cast iron, pipe + joint + Collar assembly
- N. 1 Cast iron base
- N. 4 Ergonomic handles for securing and releasing the components

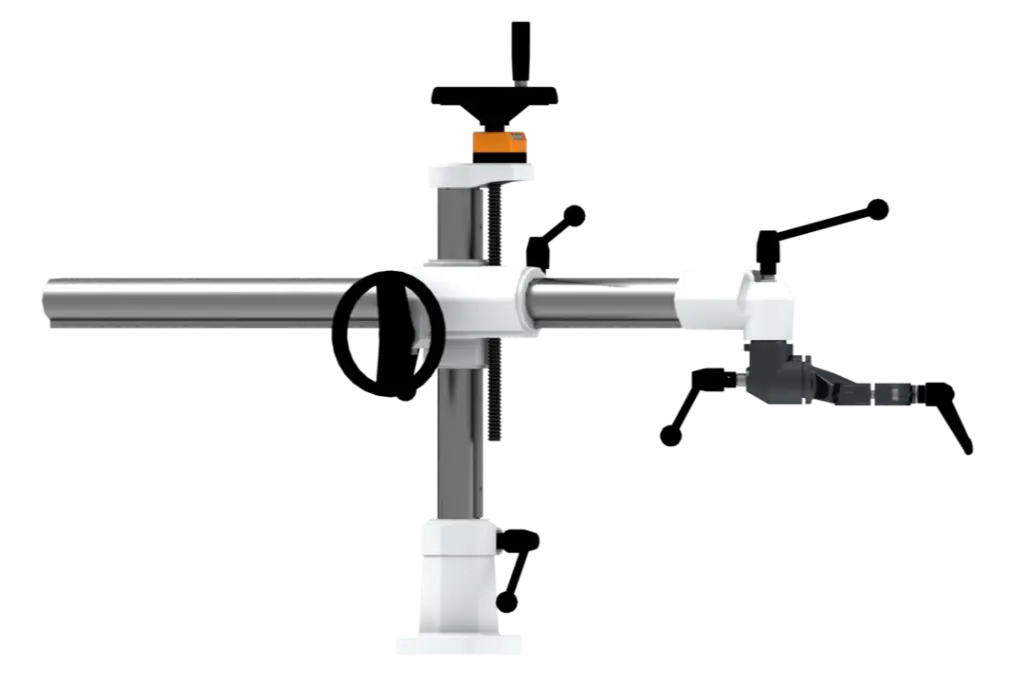

Structure for supporting and positioning the power-feeding unit
Completes the feeding unit and enables its positioning anf fine adjestment on the wood-working machine. The longer horizontal tube allows for greater flexibility, while the ergonomic handles and numeric counter for the height adjustment allows a quick, easy and accurate positioning.
- Stable and strong: base, cross-shaped piece, pipe joint and collar made of cast iron; vertical and horizontal columns made of rectifiels steel with considerable thickness.
- Easy to position : Thanks to the ergonomic handles and adjustment handwheels.
- Quick height adjustment: Thanks to the numeric counter.
- Safe and reliable: The SPS System safety device prevent accidental detachment of components, in compliance with CE safety regulations.
More than 400.000 machines manufactured, over sixty years' experience. Maggi is the only European manufacturer of power-feeding units, which are 100% Italian-made, and abiding by the highest quality standards, as a result of the "Lean" manufacturing process, also known as "Toyota System"
