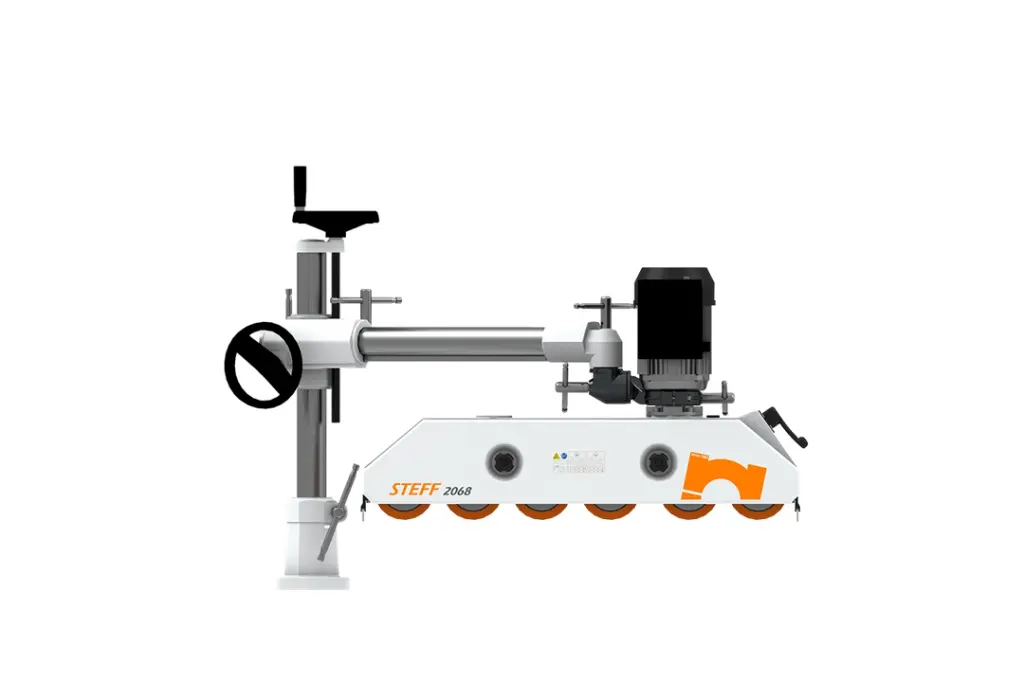

STEFF 2068
SKU:
169.00300
Professional automatic power feeder unit with 6 wheels and fixed speeds.
Brand:
Maggi Technology
Category:
Power Feeder
Professional power-feeding unit with fixed speeds

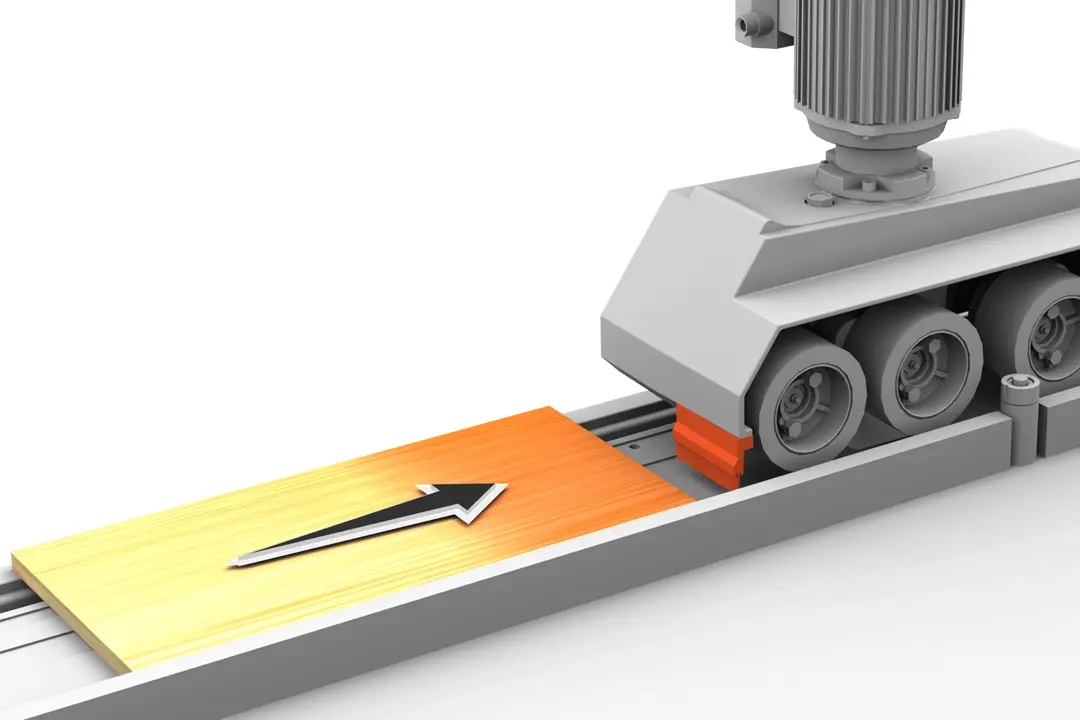

Safety device for a safe and effective workpiece feeding on different types of traditional wood-working machines.
- Improves the safety: the operator does not have to there hands close to the cutting tool
- Improves the finish quality, thanks to the constant and feed-rate
- Feed-rate can be easily selected to meet every specific working need
- easily adjustable to suit different sizes of work pieces
More than 400.000 machines manufactured, over sixty years' experience. Maggi is the only European manufacturer of power-feeding units, which are 100% Italian-made, and abiding by the highest quality standards, as a result of the "Lean" manufacturing process, also known as "Toyota System"
High-quality lage-size end product

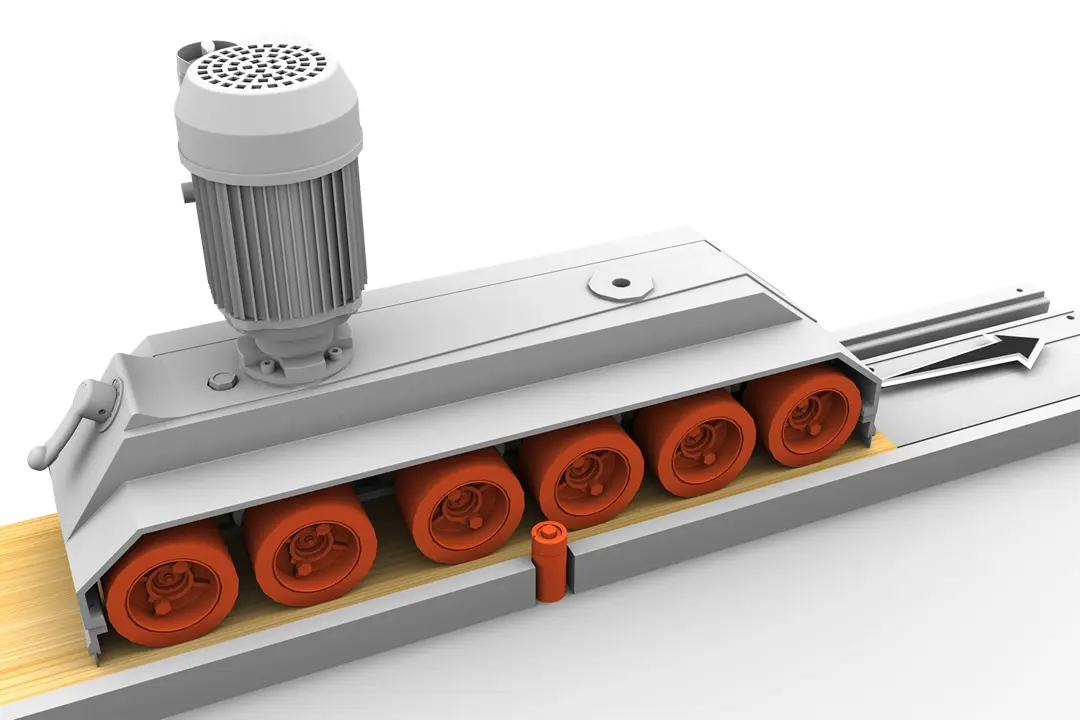

The only and biggest 6-wheel model in the range; the ideal solution to feed long and heavy workpieces ( i.e. parts of windows and doors). Thanks to the 3 infeed wheels and the 3 outfeed ones, even the heaviest workpieces can be transported successfully.
Quich set-up with gear shift

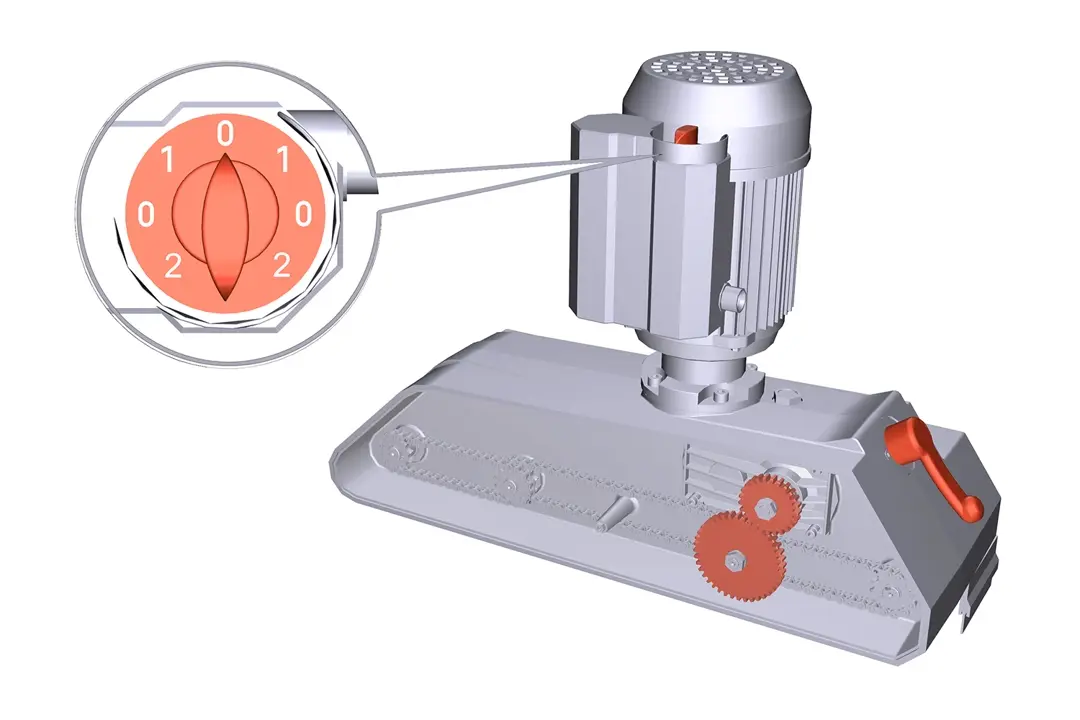

The speed selector allows a quick set-up of the 1st and 2nd feeding rate and quick change of the feeding direction back and forth. First 4 speeds are obtained by swapping the internal gears, while turning the gear lever You can get the additional 4 speeds easily and fast.
High adaptability
The 20 mm wheel suspention, with calibrated springs, allows the constand and even feeding of workpieces with different thicknesses without any additional set-up.
Safety brushes
Additional safety devices, both sides of the feeding unit.
Data
- N. of speed back and forth
- Fixed speeds
- N. of wheels
- Wheel diameter and thickness
- Wheel suspension
- Distance between wheels
- Distance between first and last wheel
- Overall dimensions and net weight of feeding unit
- Packing dimensions and gross weight
8
2 - 4 - 5.5 - 6.5 - 11 - 13 - 16.5 - 33 m/min
6
120 x 60 mm
20 mm
133 - 154 - 133 - 133 - 133 mm
685 mm
853 x 240 x 490 mm - 43 kg
1000 x 560 x 340 mm - 47kg
Standard Equipment
- Motor 1HP / 0.75kW, 400V - 1400/2800rpm with 3m cable
- Cast aluminium housing, finshed on high-precisionmachining centers
- Steel-made gear cover
- Eco-friendly, rust-resistant powder coating
- Manufactured according to EC standards
- 50-Shore :Feeder Grip" rubber wheels
Professional power-feeding unit with fixed speeds
Safety device for a safe and effective workpiece feeding on different types of traditional wood-working machines.
- Improves the safety: the operator does not have to there hands close to the cutting tool
- Improves the finish quality, thanks to the constant and feed-rate
- Feed-rate can be easily selected to meet every specific working need
- easily adjustable to suit different sizes of work pieces
More than 400.000 machines manufactured, over sixty years' experience. Maggi is the only European manufacturer of power-feeding units, which are 100% Italian-made, and abiding by the highest quality standards, as a result of the "Lean" manufacturing process, also known as "Toyota System"
High-quality lage-size end product
The only and biggest 6-wheel model in the range; the ideal solution to feed long and heavy workpieces ( i.e. parts of windows and doors). Thanks to the 3 infeed wheels and the 3 outfeed ones, even the heaviest workpieces can be transported successfully.
Quich set-up with gear shift
The speed selector allows a quick set-up of the 1st and 2nd feeding rate and quick change of the feeding direction back and forth. First 4 speeds are obtained by swapping the internal gears, while turning the gear lever You can get the additional 4 speeds easily and fast.
High adaptability
The 20 mm wheel suspention, with calibrated springs, allows the constand and even feeding of workpieces with different thicknesses without any additional set-up.
Safety brushes
Additional safety devices, both sides of the feeding unit.
